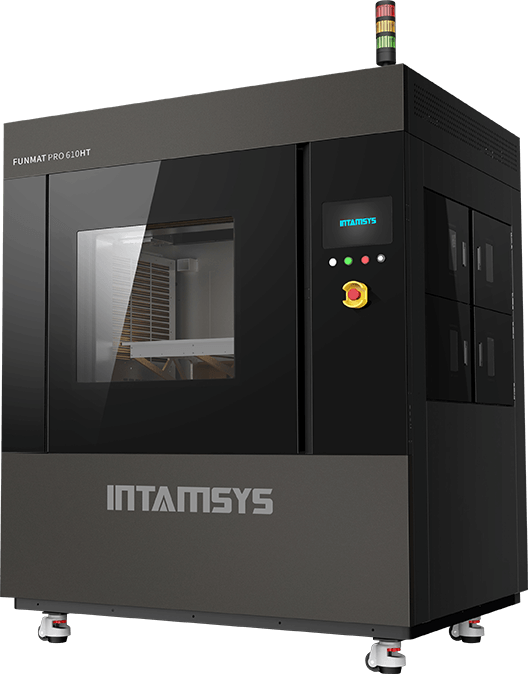

FUNMAT PRO 610HT
LARGE BUILD VOLUME INDUSTRIAL 3D PRINTER
Watch Video
With the advanced thermal design featuring high-temperature and high-speed extrusion control technology,
FUNMAT PRO 610HT has become the perfect choice for printing high-performance materials such as
PEEK, PEEK-CF, PEEK-GF, PEKK, PEI9085, PEI1010, and PPSU.
PEEK-CF, PEEK-GF, PEKK, PEI9085, PEI1010, PPSU
PEEK-CF, PEEK-GF, PEKK, PEI9085, PEI1010, PPSU
PEEK-CF, PEEK-GF, PEKK, PEI9085, PEI1010, PPSU

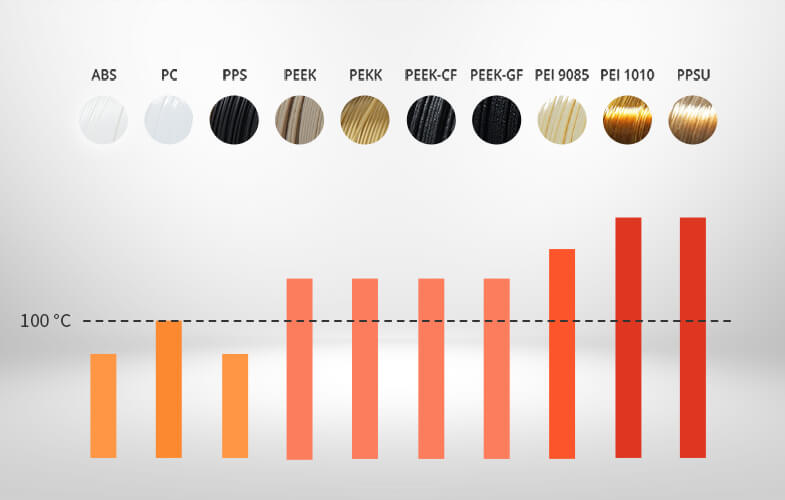

The high melting point of high-performance materials and its demanding requirements for high-temperature
processing is a challenge for the 3D printing.

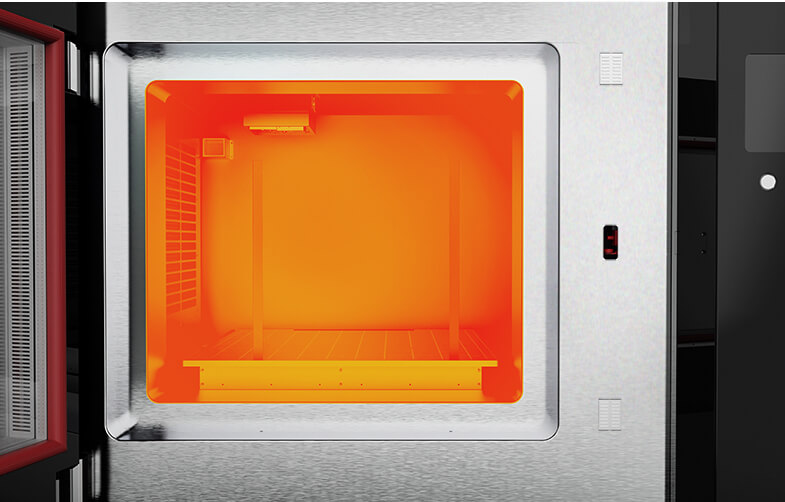

Equipped with a uniformly heated chamber that can reach up to 300°C and a dual extruder capable of reaching 500°C, the FUNMAT PRO 610HT can print nearly all high-performance thermoplastic materials available on the market, ensuring superior print quality and enhanced mechanical properties of the printed parts.
In-depth research into material characteristics like PEEK, PEI, and PPSU, as well as rich experience in high-performance material process development to maximizes the properties of the materials.

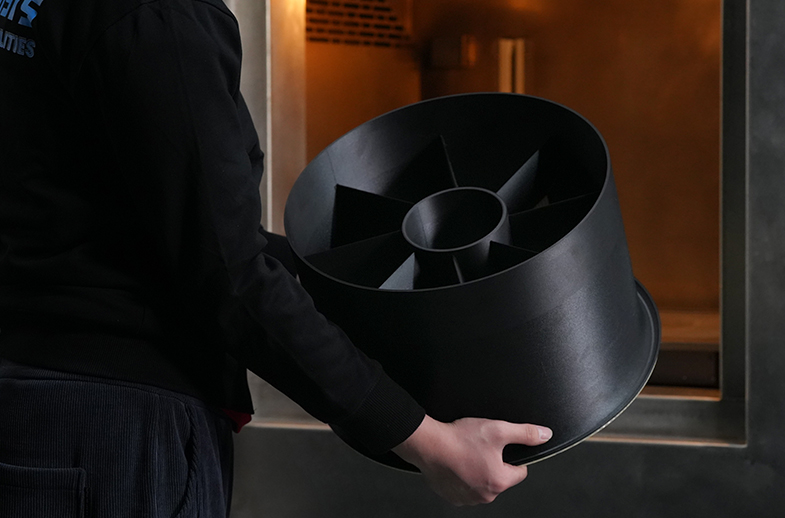

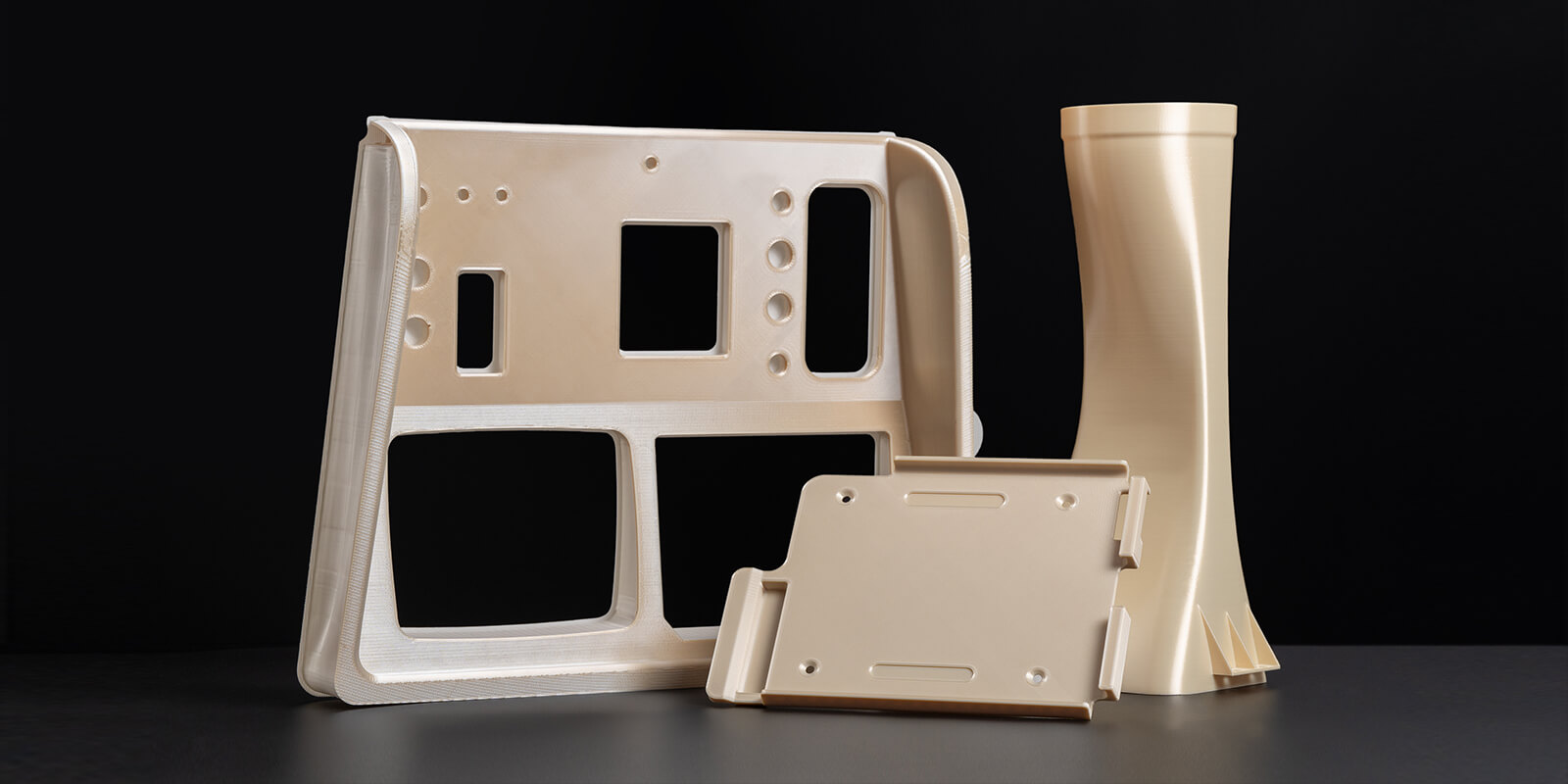

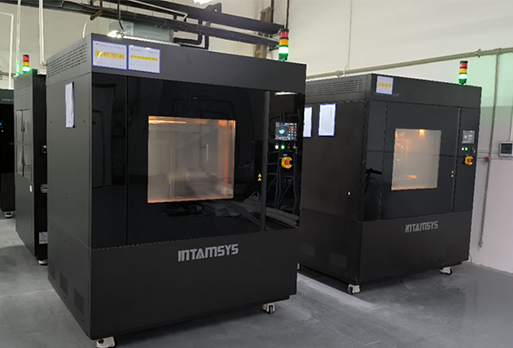

Due to its spacious build volume of 610 x 508 x 508 mm, the FUNMAT PRO 610HT enhances productivity by
enabling the printing of larger parts without the need for assembly and allowing for
the simultaneous production of multiple smaller parts.
It offers higher strength, simplified post-processing, and is both time-saving and cost-effective.

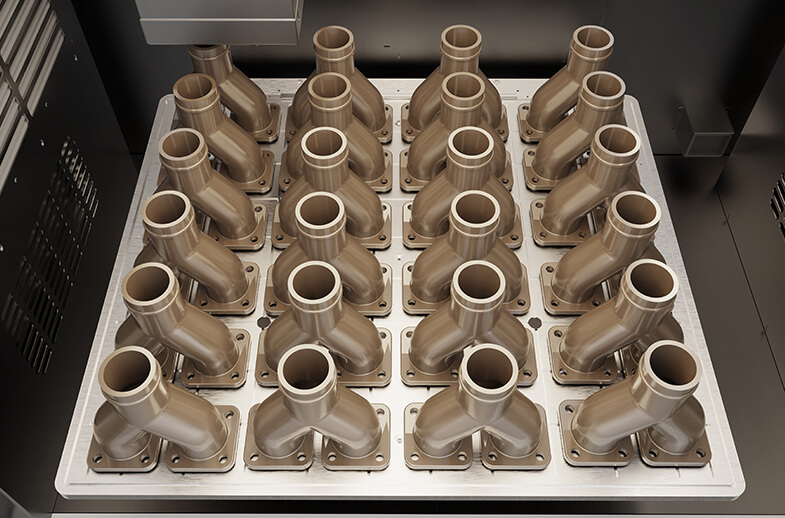

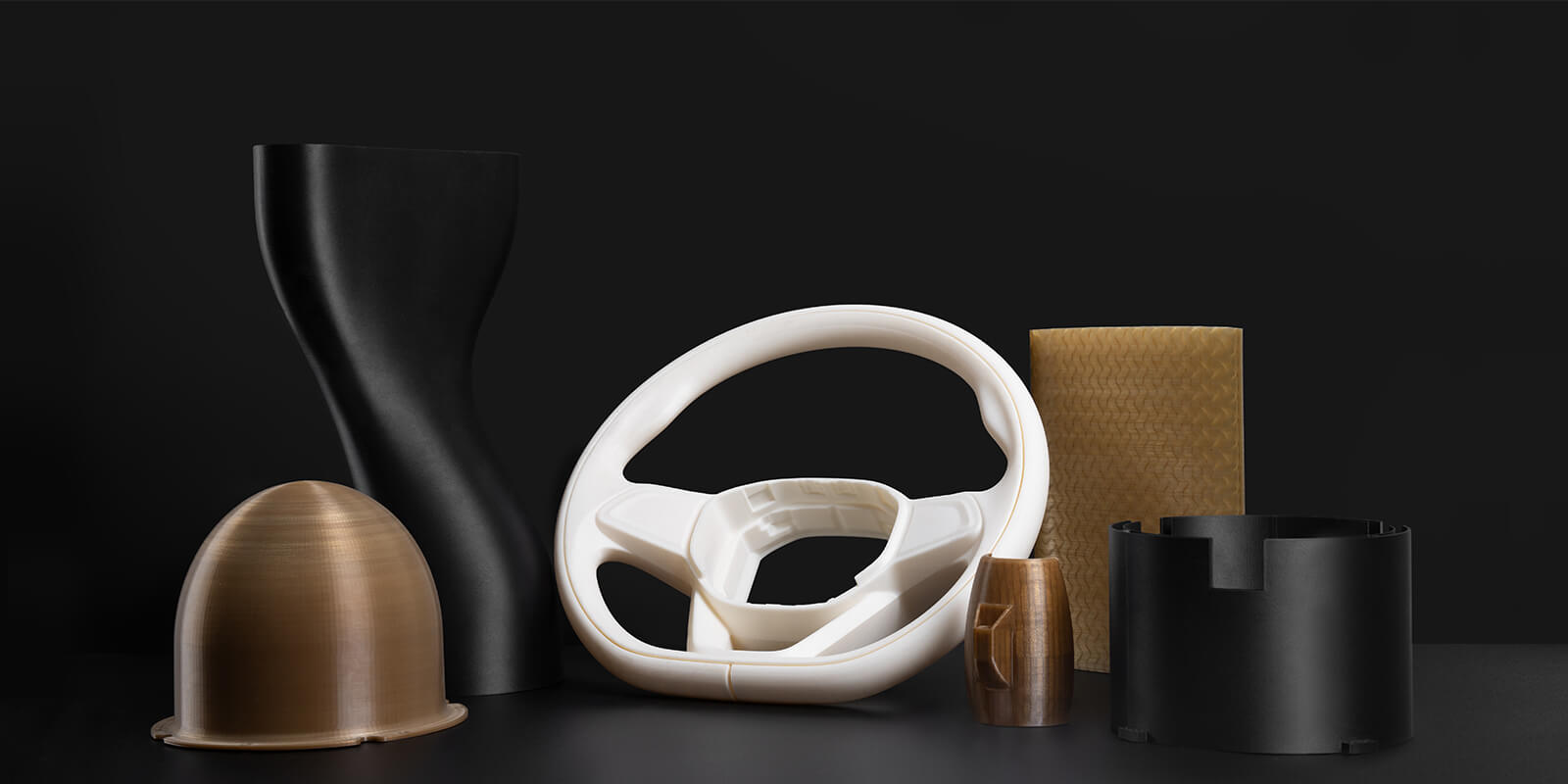

Bolster productivity by printing multiple parts simultaneously, ensuring uniformity of material properties across all printed parts.

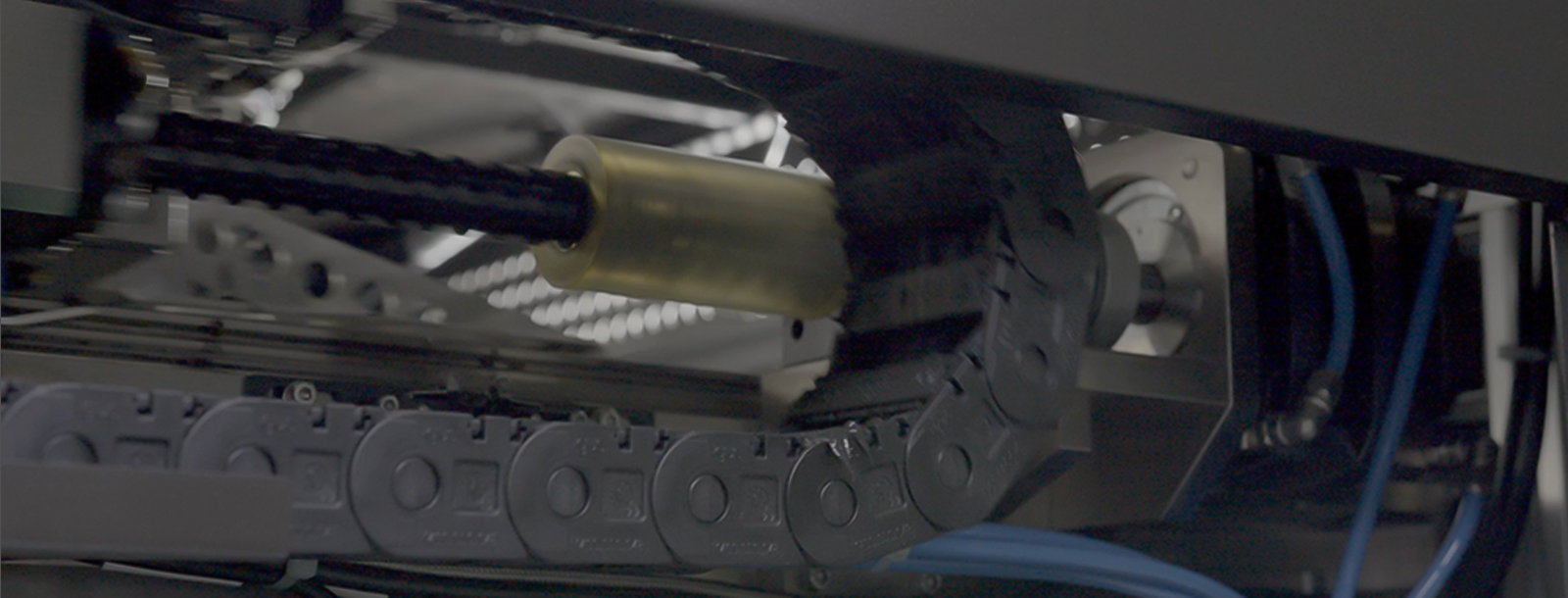

With a closed-loop servo control system and a high-precision ball screw drive system, the accuracy of movement positions is significantly enhanced (with XY axis precision at 12.5 µm and Z axis precision at 1.25 µm), ensuring remarkable surface finish at high printing speeds.

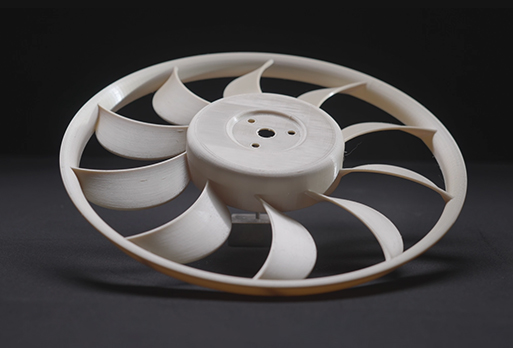

Dual nozzles with support material solutions provide high-quality surface finishes on complex geometries.

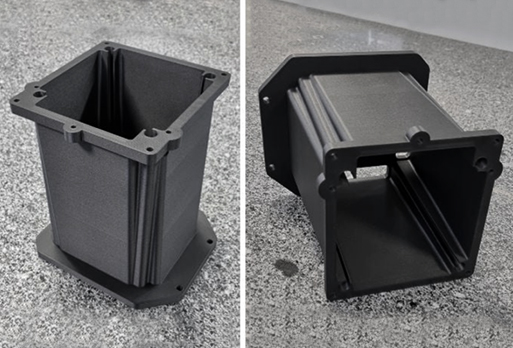

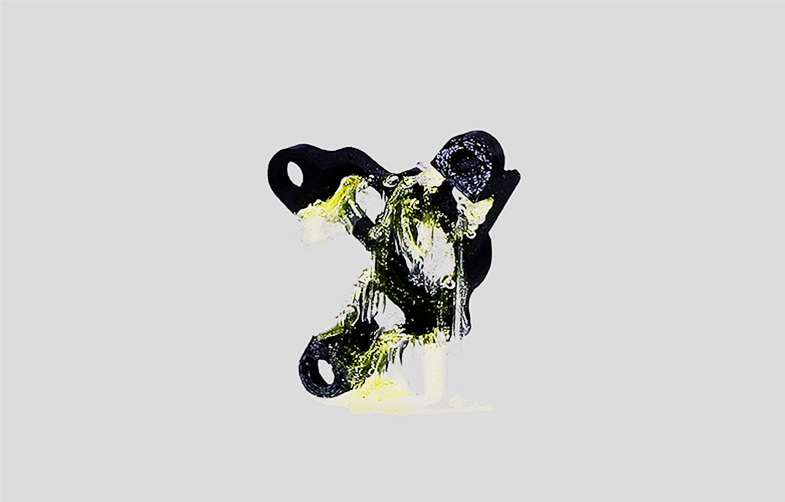

When printing complex geometries such as piping, where the support material is difficult to peel off manually, water-soluble materials can be used to support the structure and dissolve in water, ensuring perfect printing quality.

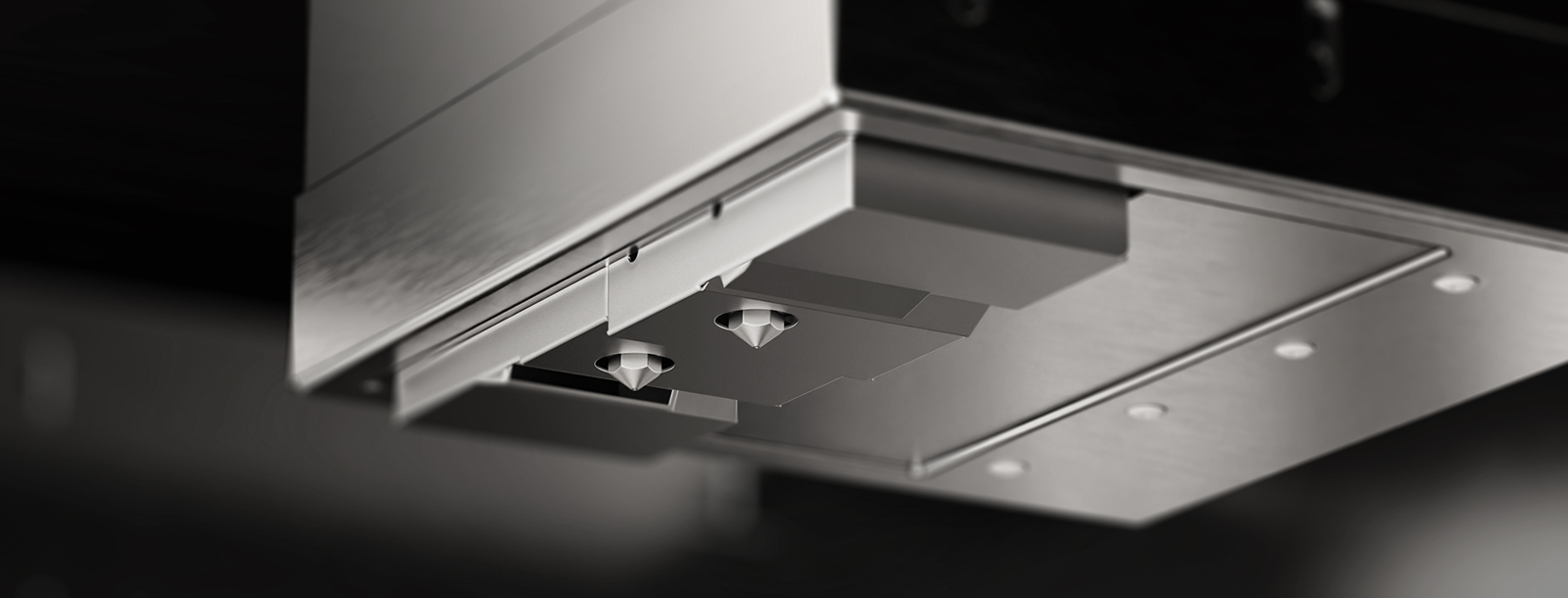

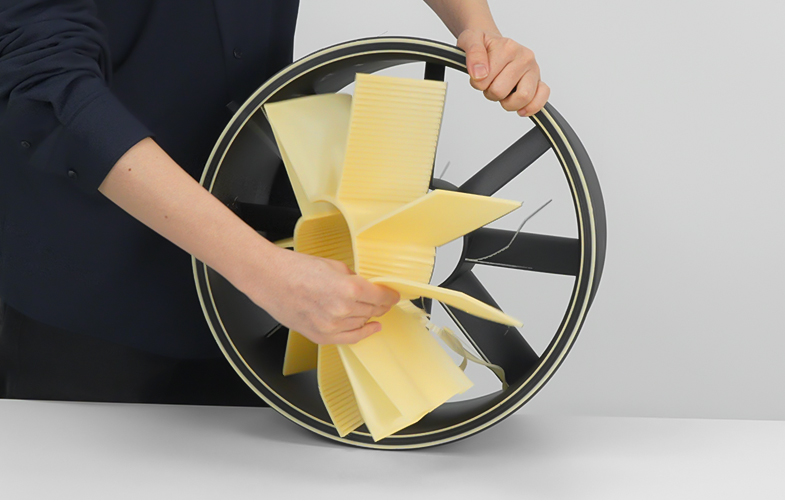

The dual extruder design makes removing the support material easy without worrying about the roughness of the contact surface caused by the peeling of the support material.
Intelligent design with auto-cleaning nozzles, filament auto-reloading, filament jam warning, and filament absence warning to ensure seamless continuous printing.
Equipped with a liquid-cooling system for enhanced heat dissipation, preventing filament jamming issues, and ensuring prolonged service life even under high-temperature conditions.
For us, everything was a go: the price, the size of the chamber, the features, and more. We are always seeking new innovations and avoiding the mainstream, and with INTAMSYS and high-temperature polymer 3D printing, we have achieved that.
Laurent Parisse
The Head and Owner of Société Parisse
Automated slicing for model design and repair. All-in-one collaborative additive manufacturing platform for online monitoring and print process optimization.
Explore More
The technical specialists provide professional, efficient, complete, and full-cycle service throughout.
24h response and 72h solution provided for technical faults and product usage problems. If further assistance is required, an engineer will be sent to the customer's site within the specified response time for troubleshooting and repairs.
Established spare parts warehouse in Europe/America. Delivery of spare parts within 3 days; all spare parts can be delivered within 7 days.
Incorporates a high-quality industrial safety control system with independent safety PLC, upgraded electromagnetic safety locks, and redundant safety sensors.
Designed based on EN60204 safety standards.
This ensures comprehensive safety protection with minimized risks during the whole printing process.
Both for front and top doors
More reliable safety system
Chamber Temperature Sensor+ Temperature Limiter
Optimized control for various work cases
INTAMSYS Facilitates JLC's Breakthrough in Large-Size 3D Printing Service Business
4D Concepts, 3D Printing Service Company, Expands Its Portfolio to Better Answer High-Performance Prototype Demands
Industrial 3D Printing with High Performance Polymers Can Replace Traditionally Made Metal Parts
|
3D Printers
|
FUNMAT PRO 310 NEO |
FUNMAT PRO 610HT |
FUNMAT PRO 410 |
FUNMAT HT |
FUNMAT PRO 310 |
|---|---|---|---|---|---|
|
BUILD SIZE
|
Single Nozzle: |
610 × 508 × 508 mm |
305 x 305 x 406 mm |
260 x 260 x 260 mm |
Single Nozzle: |
|
MATERIALS
|
29
ABS+, ABS-GF, ABS-HS, ASA, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PC-PBT, PET-CF, PETG, PET-GF, PLA, PPA-CF, PPA-GF, PPS, PPS-CF, PPS-GF, PVA, SP3030, SP3050, SP5010, TPU95A, KIMYA ABS-ESD, BASF PC/ABS-FR, WANHUA PA12 |
36
PEEK, PEEK-CF, PEEK-GF, PEI 1010, PEI 9085, PEKK, PET-CF, PET-GF, PPA-CF, PPA-GF, ABS, ABS+, VICTREX AM™ 200 FIL, ASA, BASF ULTRAFUSE® PPSU, CONVESTRO PA6/66-GF20-FR, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PLA, PPS, PPSU, PVA, SP3030, SP3050, SP5000, SP5010, SP5040, SP5080, WANHUA PA12 |
30
ABS, ABS+, KIMYA ABS-ESD, VICTREX AMTM 200FIL, VICTREX AMTM450 FIL, ASA, CONVESTRO PA6/66-GF20-FR, HIPS, PA12-CF, PA6/66, PA6-CF, PC, BASF ULTRAFUSE® PC/ABS FR, PC/ABS, PC-FR, PC-PBT, PEEK, PEEK-CF, PEEK-GF, PEKK, PLA, PPA-CF, PPA-GF, PPS, PVA, SP3030, SP3050, SP5000, SP5010, WANHUA PA12 |
14
PEEK, PEEK-CF, PEEK-GF, PEKK, ABS, PC, PPA-CF, PPA-GF, PPS, PA12-CF, PA6/66, PA6-CF, ASA, PLA |
16
PA12-CF, PA6/66,PA6-CF,WANHUA PA12, PC, PC/ABS, ABS+, ABS, KIMYA ABS-ESD, ASA, BASFPC/ABS-FR, HIPS, PLA, PVA, SP3030, SP3050 |
|
PRINTER DIMENSIONS/
WEIGHT |
Overall Dimensions: 700 x 655 x 700 mm Overall Weight: 80 kg |
Overall Dimensions: 1710 x 1425 x 2080 mm With lighthouse: 1710 x 1425 x 2350 mm Overall Weight: 1450 kg |
Overall Dimensions: 728 x 684 x 1480 mm Overall Weight: 230kg |
Overall Dimensions: 543 x 501 x 645 mm Overall Weight : 63 Kg |
Overall Dimensions: 700 x 655 x 700 mm Overall Weight: 80 kg |
BROCHURE |
Download |
Download |
Download |
Download |
Download |

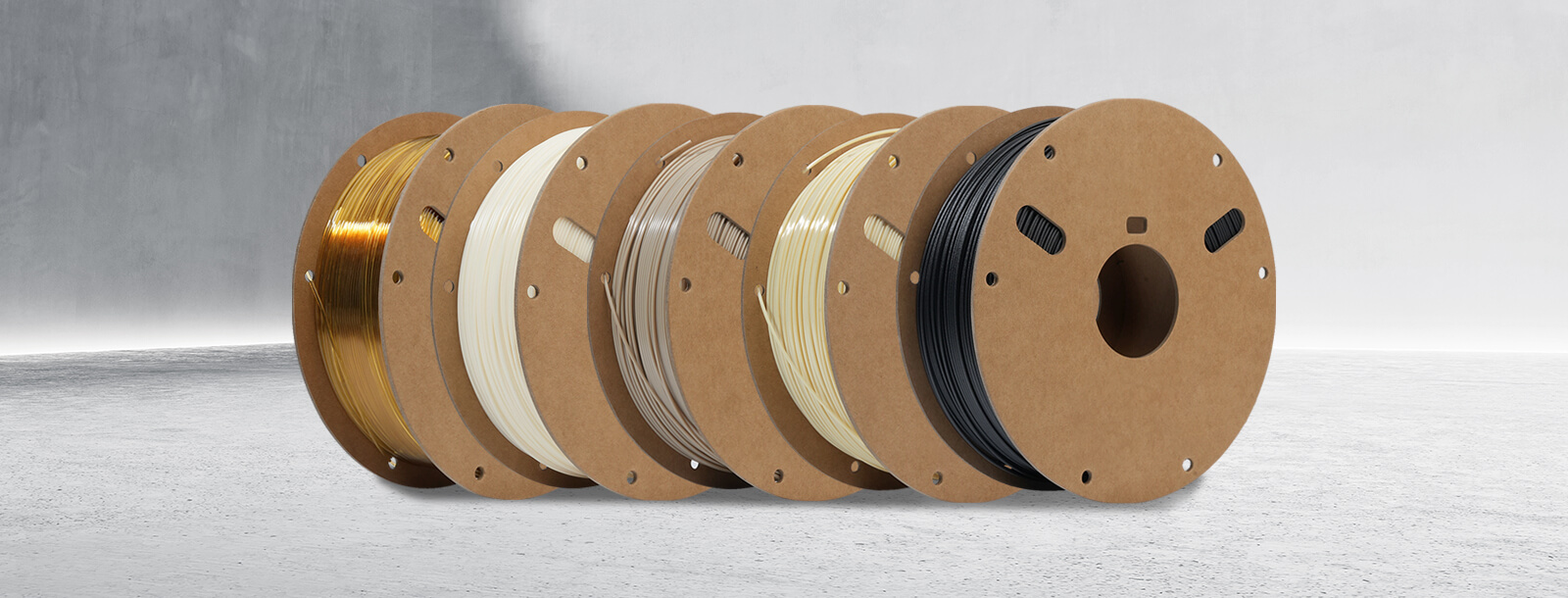

ALL FILAMENTS
PEI is an amorphous, high-performance polymer that combines excellent thermal properties, dimensional stability, inherent flame retardancy, and good chemical resistance. The resin is FAA-approved for FST applications (flame/smoke/toxicity) and complies with FAR 25.853 and OSU 65/65 standards.
Explore More
Polyether ether ketone is one of the best-performing plastics ever made. PEEK has excellent mechanical, thermal, and chemical resistance, making it the material of choice in some of the most demanding applications.
Explore More
PPSU is considered one of the highest-performing plastics in the industry. This high-temperature amorphous polymer has excellent heat and chemical resistance, making it ideal for demanding applications in automotive, aerospace, electronics, defense, industrial, medical, and semiconductor fields.
Explore More
INTAM™ PEKK is made from Arkema Kepstan® ingredients. As the leading material in the PAEK family, it enhances the molecular chain of PEEK, reduces crystallization speed and melting point, and improves fluidity, making it more suitable for 3D printing.
Explore More
