FUNMAT PRO 310 NEO
INDUSTRIAL HIGH-SPEED 3D PRINTER
Watch Video
Ideal for Small-Batch Manufacturing in Industrial Applications
Offers 8 high-speed material processing options, achieving a productivity range of 500-1000g/day
Doubles capacity for duplicate and mirror mode, reaching 1kg/day.
Maintains perfect control over print quality and precision at high speeds, delivering reliable continuous production to meet industrial application demands.
Powered by NXP's advanced MCU, this mainboard provides the robust computing power needed for high-speed printing.
Intelligent Speed Prediction: Predicts printing speeds based on path complexity to maintain exceptional surface quality even with intricate feature structures.
Flow Compensation Technology: Dynamically adjusts the material extrusion rate to prevent surface defects during high-speed printing.

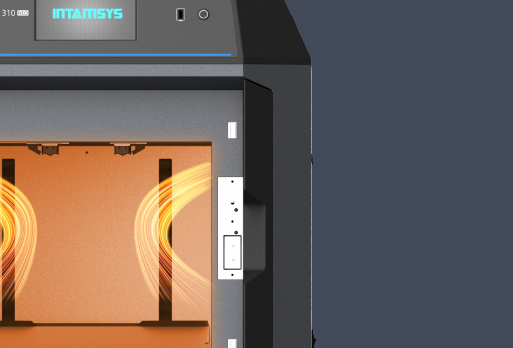

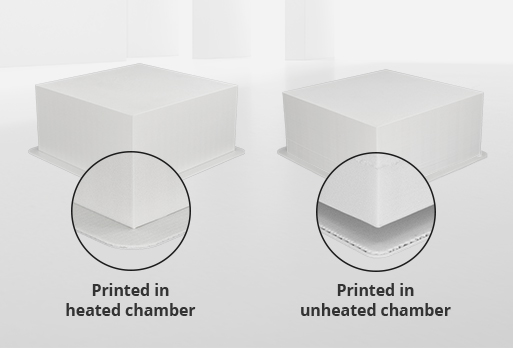

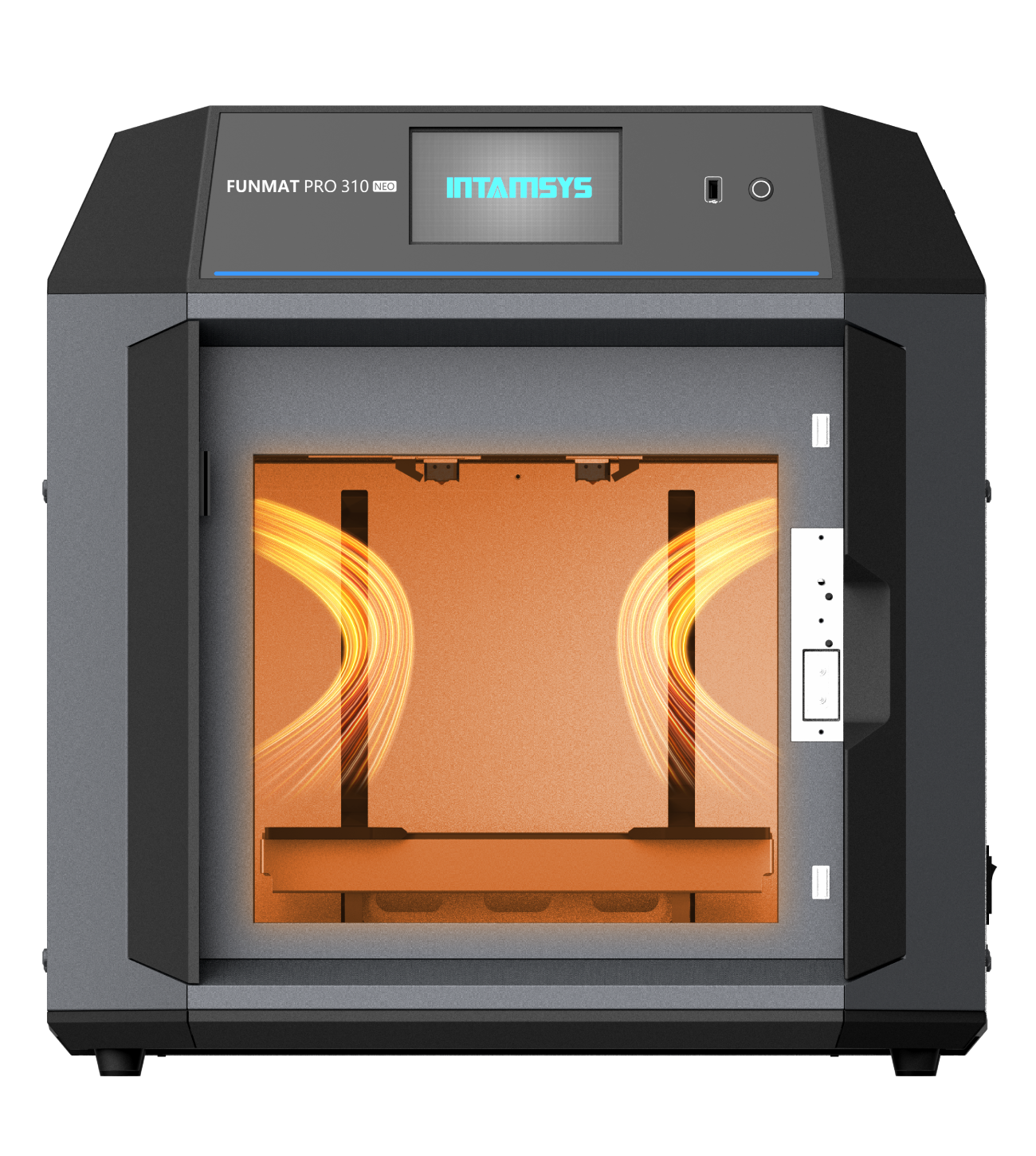

The active heated chamber maintains a consistent temperature up to 100°C, optimizing material properties and mechanical strength for a wide array of engineering plastics.
Reduce thermal deformation and shrinkage of the model during the printing process, avoiding warping to achieve large-format (305 x 260 x 260 mm) printing.
Heated chamber at 100°C prevents warping, delamination, and deformation in long-edge PC prints over 150 mm.
High-temperature semi-crystalline structures provide enhanced strength and toughness.

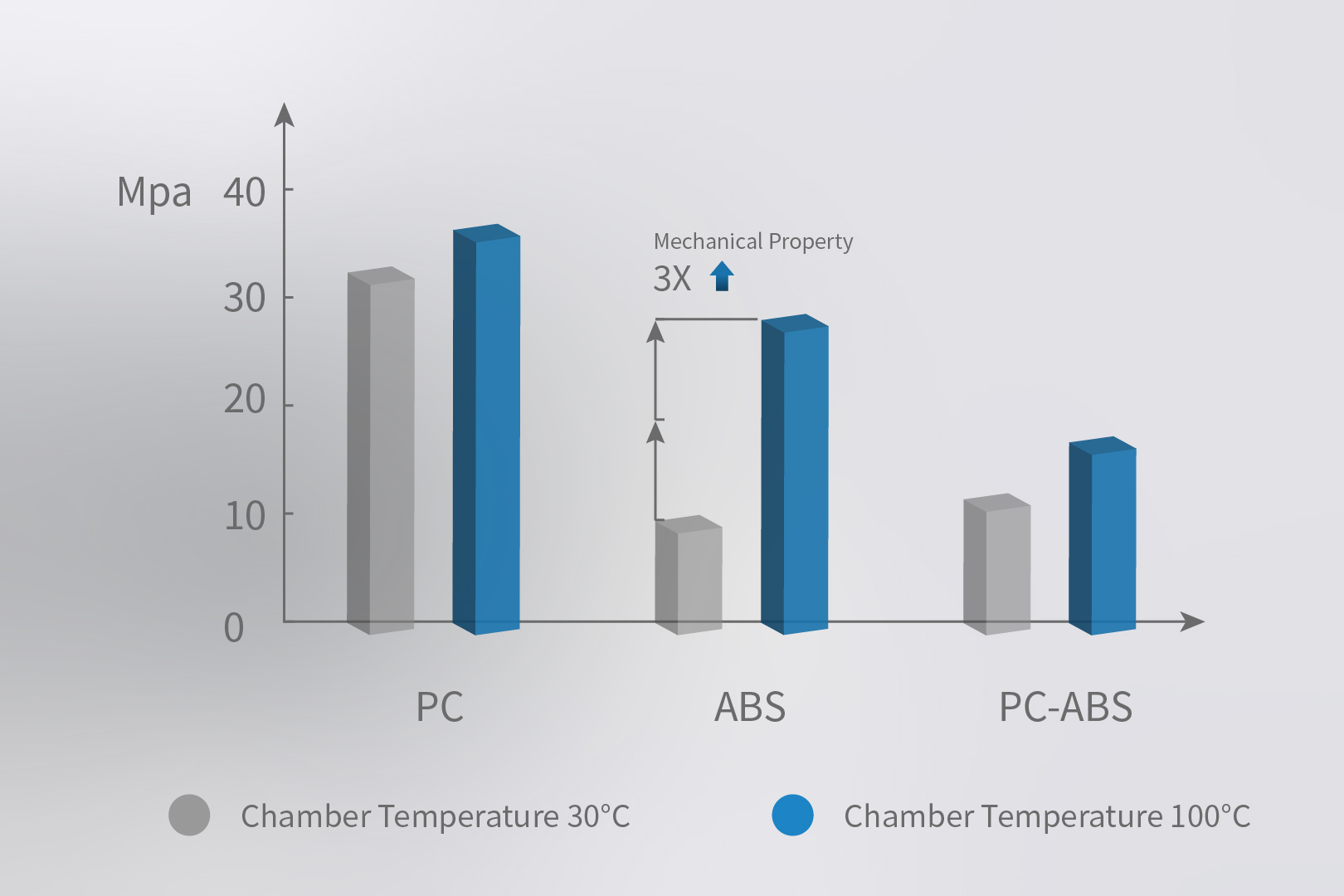

Consistent chamber temperatures ensure consistent mechanical performance.
Capable of Printing High-Performance, Flexible, and Engineering Materials
High-Performance Thermoplastics: PPS, PPS-CF/GF
Engineering Thermoplastics: PPA-CF/GF, PC, PC-FR, PC/PBT, ABS-HS, PA12-CF, PC/ABS, ABS+, PA6/66, PA6-CF
Flexible Materials: TPU95A
Basic Material: PLA
Optimal Impact Resistance
Good Mechanical Strength
Resistant to High Temperatures
1/10 the moisture absorption of standard PA6
Low friction, self-lubricating, and highly wear-resistant
Excellent dimensional stability and surface quality
High mechanical strength
High heat resistance with good thermal stability
Resistant to chemicals, flame-retardant, and excellent electrical properties
Shore Hardness 95A
Excellent printing performance
Superior durability, with a tensile length that stretches over 3 times without breaking

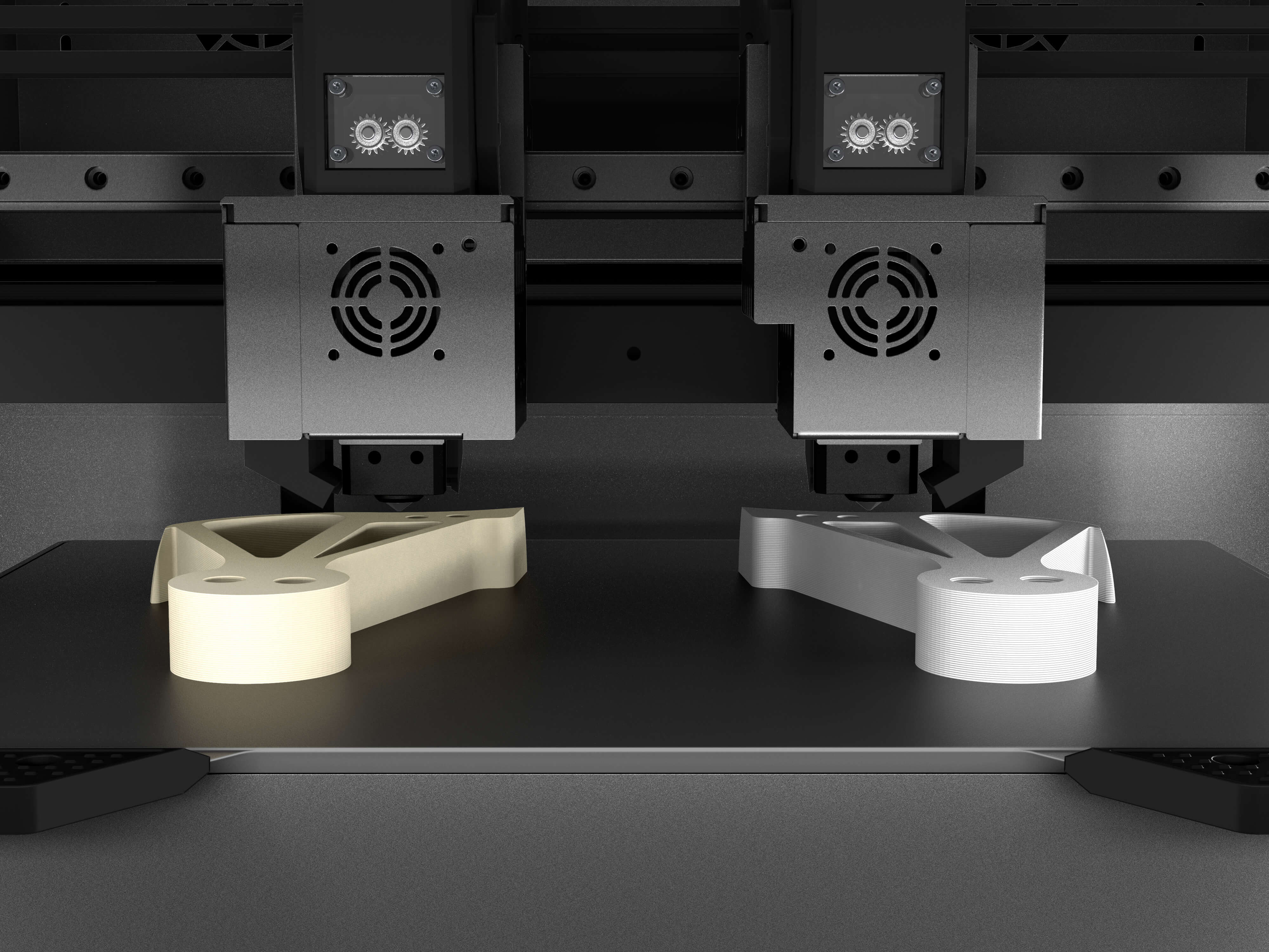

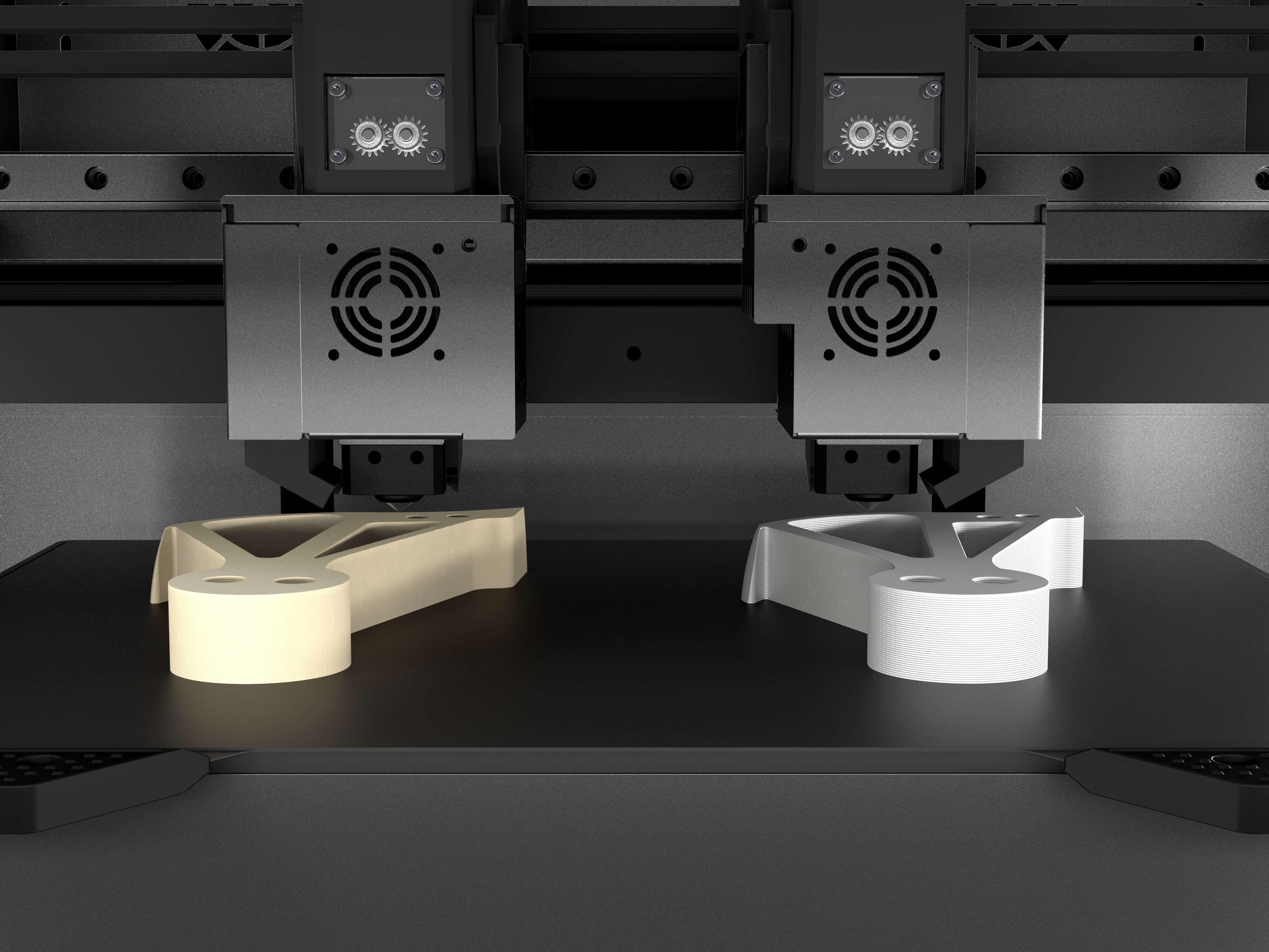

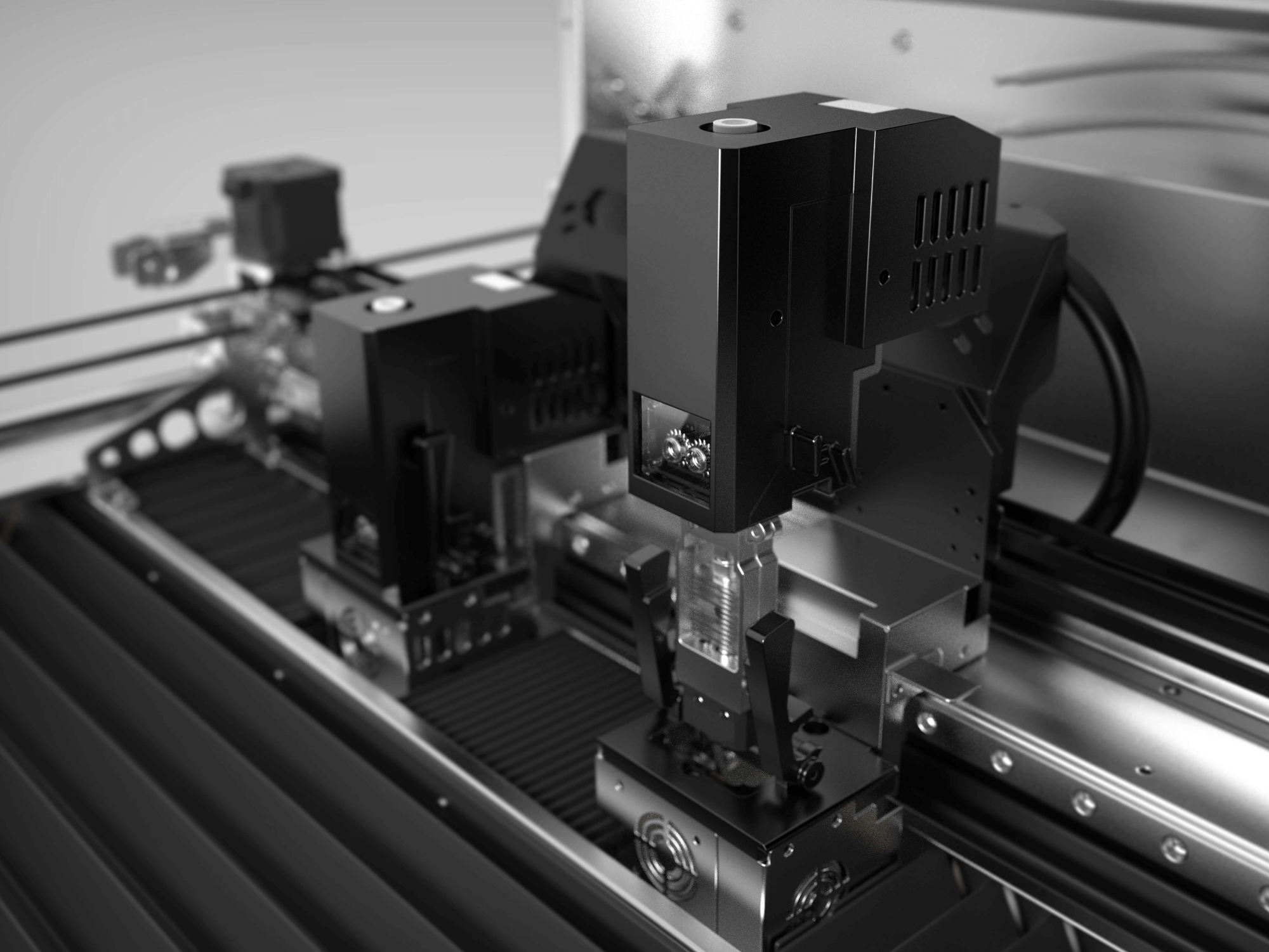

Mirror/Duplicate Mode
For Improved Batch Printing Efficiency

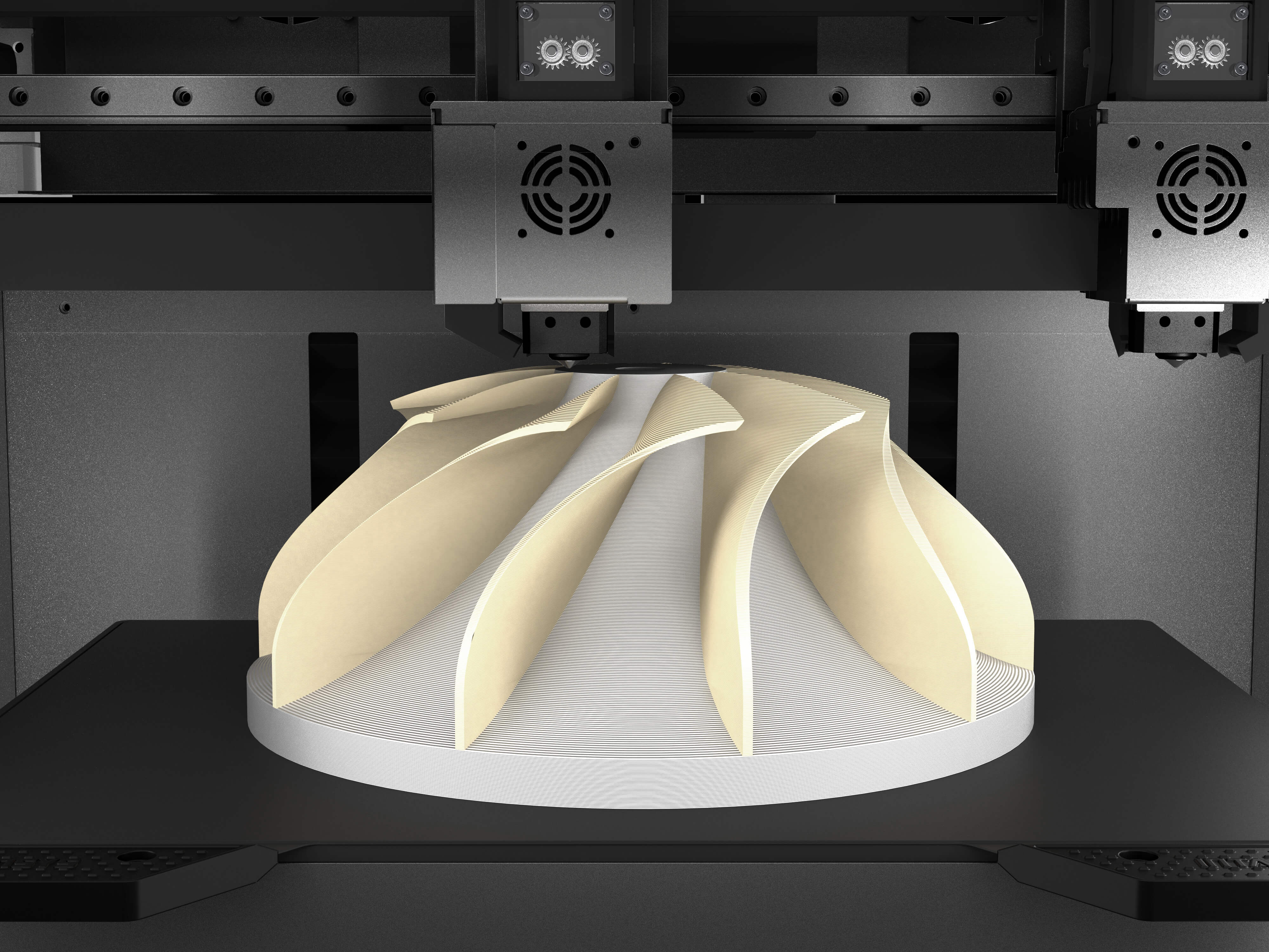

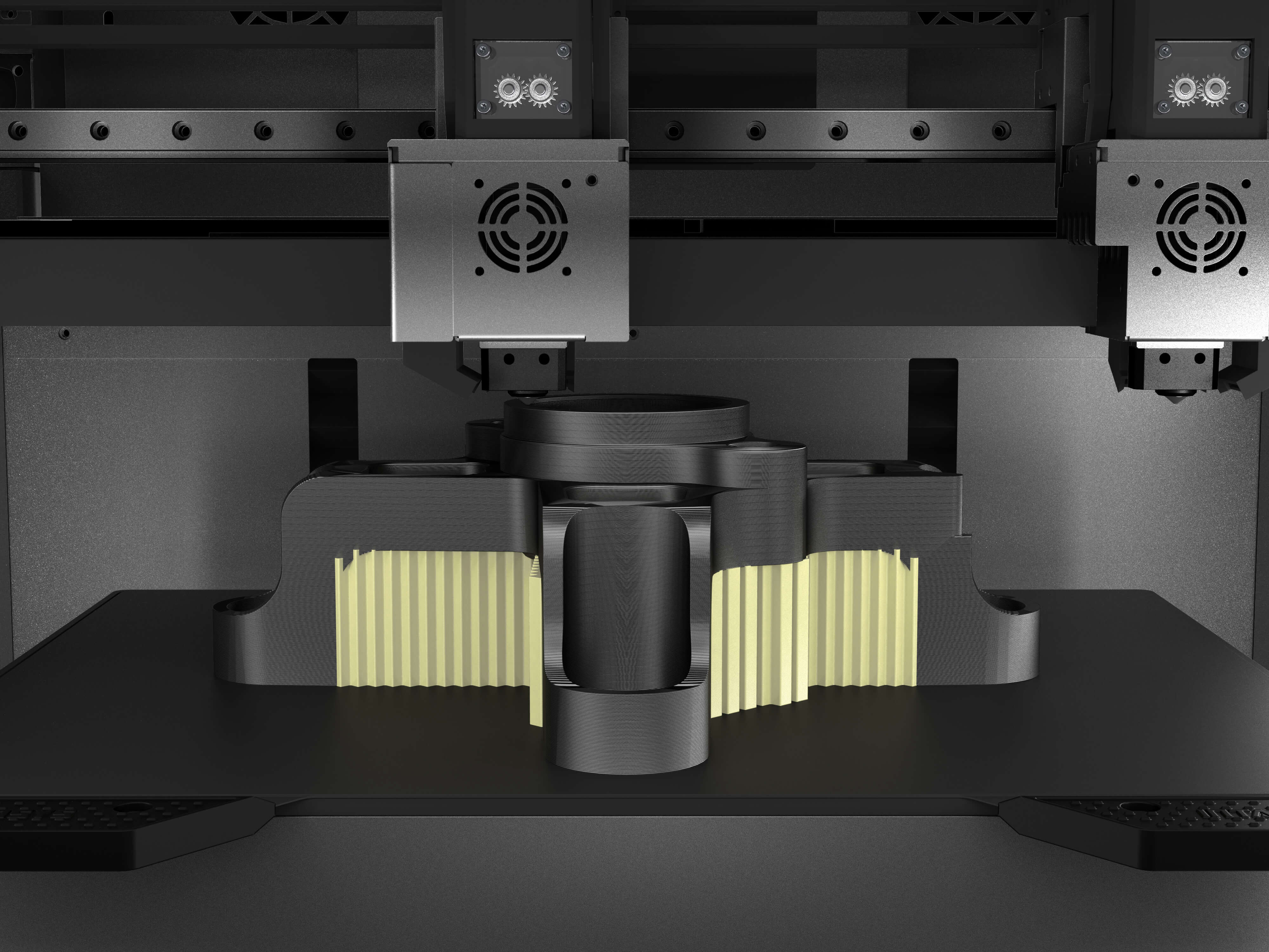

Support Mode Printing Enables
High-Quality Finish Complex Geometries Printing

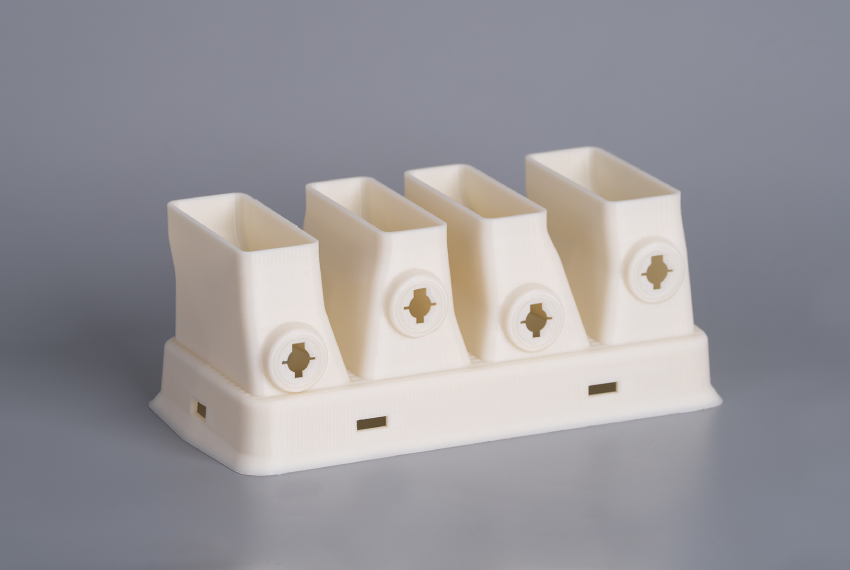

Accuracy of Printed Parts

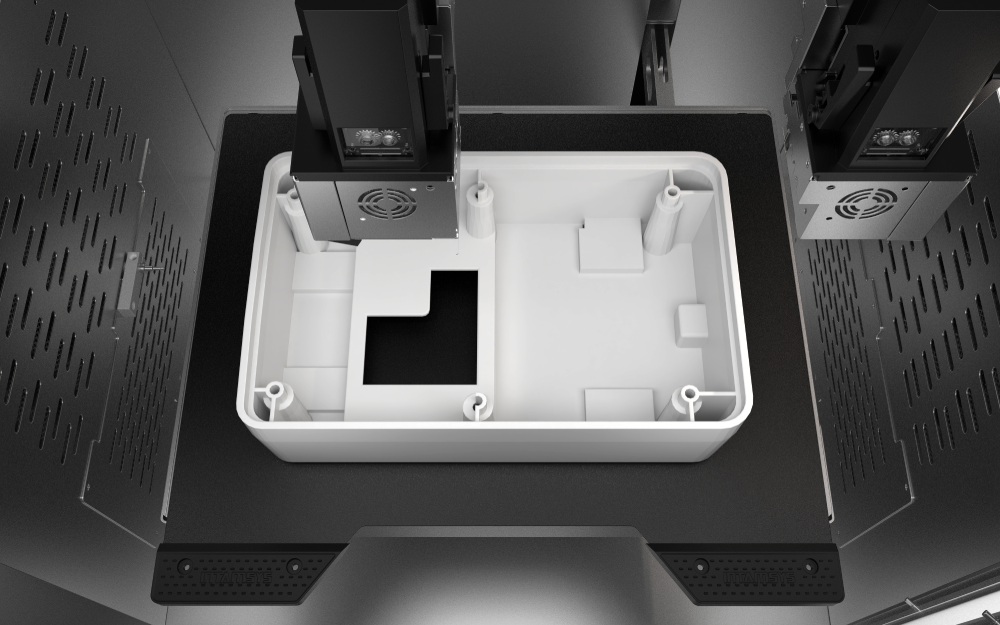

Dual Color Printing Brings More Design Inspiration
Easy-to-Use for 3D Printing Beginners and Experts Alike

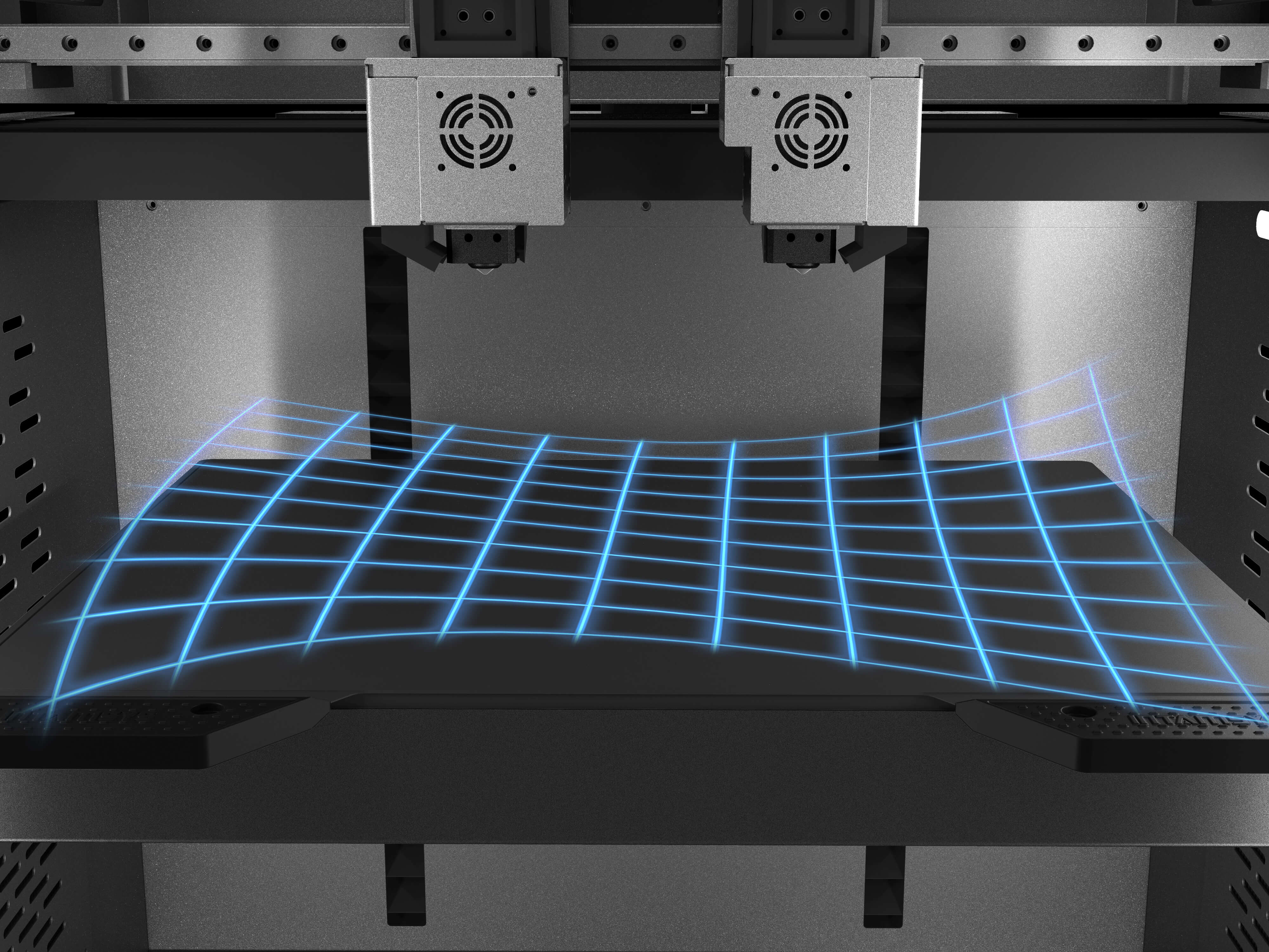

Auto mesh leveling with 100-point surface flatness measurement and automatic Z-axis compensation. Flexible build plate for easy part removal with glue-free bed adhesion.
Effortless setup and printing with auto Z-axis calibration. Precise and efficient.

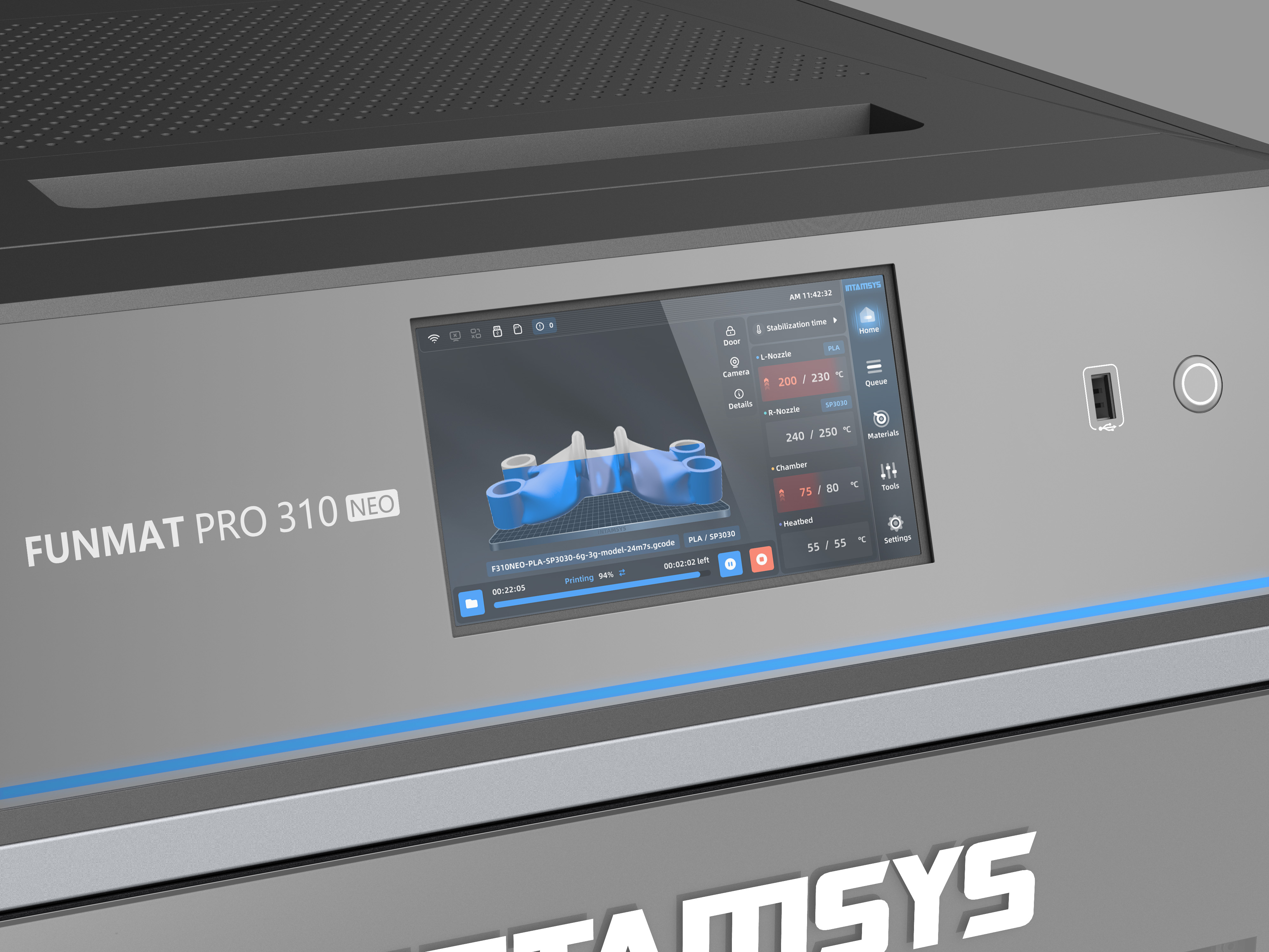

Intelligent interactive design with a user-friendly interface and task queue management function.
Plug-and-play modular design makes it easy to disassemble and maintain.

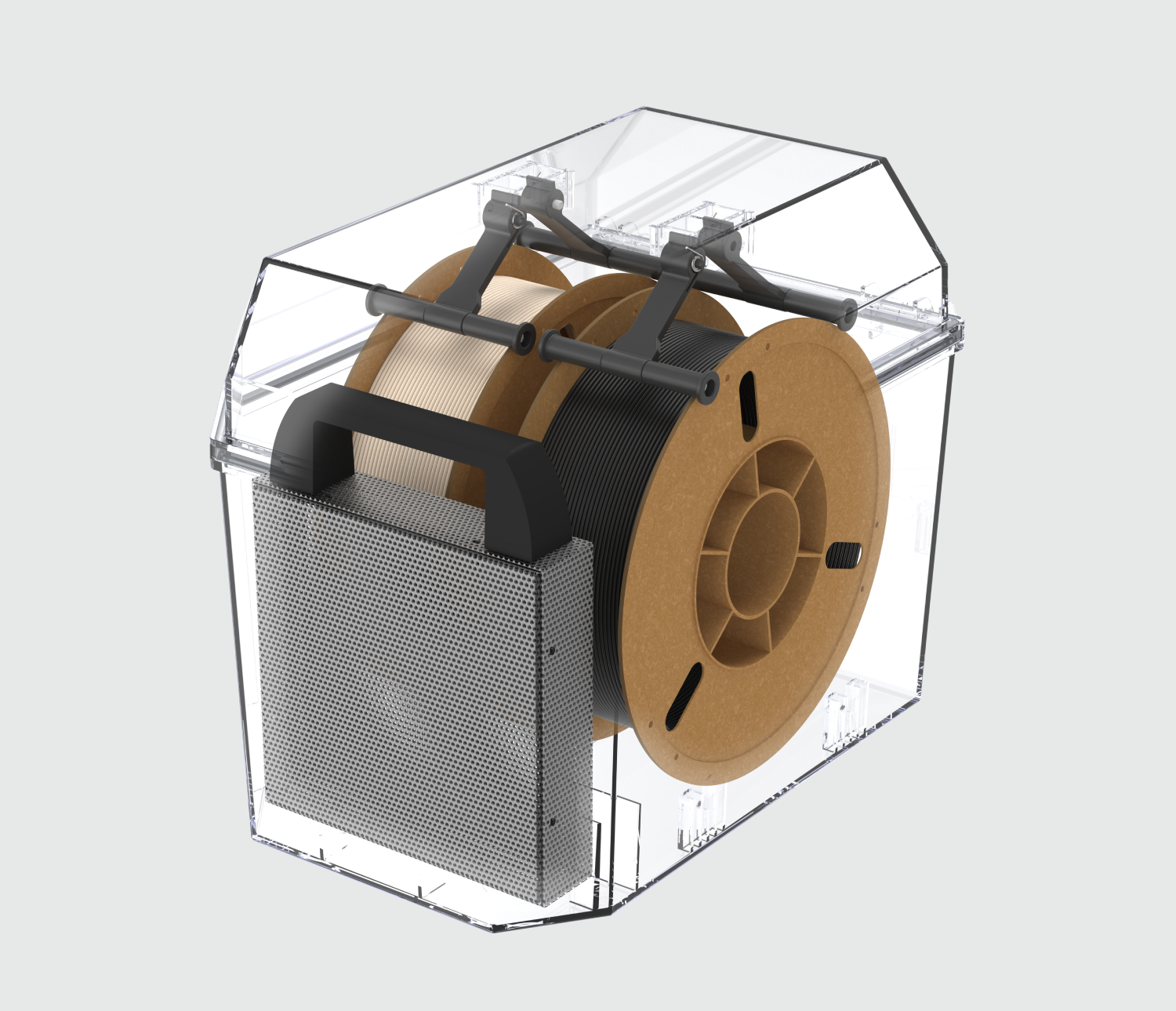

Standard with an independently sealed and dried hopper, complemented by reusable molecular sieves, eliminating the need for continuous filament drying.
Automated slicing for model design and repair. All-in-one collaborative additive manufacturing platform for online monitoring and print process optimization.
Explore More
Seamless Integration with MES to Help Companies Enter Industry 4.0
High-Standard Safety Design to Ensure the Health and Safety of Users

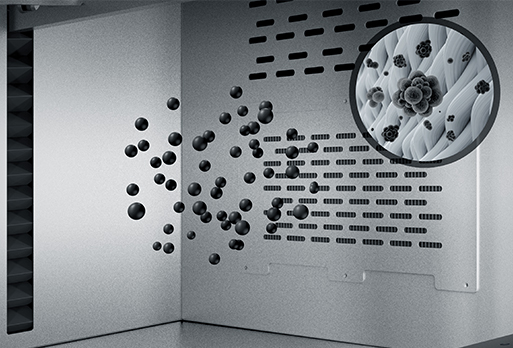

The HEPA filter can capture small particles generated during the printing process, and the activated carbon can absorb volatile chemicals emitted during the process.

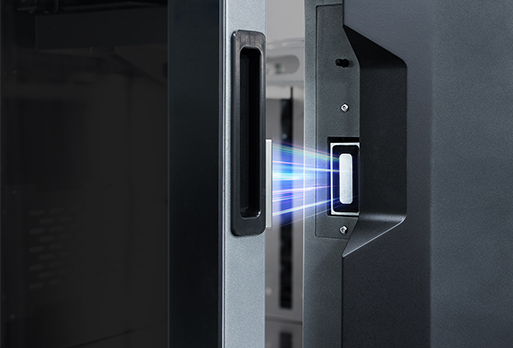

Avoid personal danger caused by misoperation during printing.
Excellent thermal insulation design (thickened insulation layer, front door with double glass, temperature-resistant cover on the top) while the printer's working.
|
3D Printers
|
FUNMAT PRO 310 NEO |
FUNMAT PRO 610HT |
FUNMAT PRO 410 |
FUNMAT HT |
FUNMAT PRO 310 |
|---|---|---|---|---|---|
|
BUILD SIZE
|
Single Nozzle: |
610 × 508 × 508 mm |
305 x 305 x 406 mm |
260 x 260 x 260 mm |
Single Nozzle: |
|
MATERIALS
|
29
ABS+, ABS-GF, ABS-HS, ASA, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PC-PBT, PET-CF, PETG, PET-GF, PLA, PPA-CF, PPA-GF, PPS, PPS-CF, PPS-GF, PVA, SP3030, SP3050, SP5010, TPU95A, KIMYA ABS-ESD, BASF PC/ABS-FR, WANHUA PA12 |
36
PEEK, PEEK-CF, PEEK-GF, PEI 1010, PEI 9085, PEKK, PET-CF, PET-GF, PPA-CF, PPA-GF, ABS, ABS+, VICTREX AM™ 200 FIL, ASA, BASF ULTRAFUSE® PPSU, CONVESTRO PA6/66-GF20-FR, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PLA, PPS, PPSU, PVA, SP3030, SP3050, SP5000, SP5010, SP5040, SP5080, WANHUA PA12 |
30
ABS, ABS+, KIMYA ABS-ESD, VICTREX AMTM 200FIL, VICTREX AMTM450 FIL, ASA, CONVESTRO PA6/66-GF20-FR, HIPS, PA12-CF, PA6/66, PA6-CF, PC, BASF ULTRAFUSE® PC/ABS FR, PC/ABS, PC-FR, PC-PBT, PEEK, PEEK-CF, PEEK-GF, PEKK, PLA, PPA-CF, PPA-GF, PPS, PVA, SP3030, SP3050, SP5000, SP5010, WANHUA PA12 |
14
PEEK, PEEK-CF, PEEK-GF, PEKK, ABS, PC, PPA-CF, PPA-GF, PPS, PA12-CF, PA6/66, PA6-CF, ASA, PLA |
16
PA12-CF, PA6/66,PA6-CF,WANHUA PA12, PC, PC/ABS, ABS+, ABS, KIMYA ABS-ESD, ASA, BASFPC/ABS-FR, HIPS, PLA, PVA, SP3030, SP3050 |
|
PRINTER DIMENSIONS/
WEIGHT |
Overall Dimensions: 700 x 655 x 700 mm Overall Weight: 80 kg |
Overall Dimensions: 1710 x 1425 x 2080 mm With lighthouse: 1710 x 1425 x 2350 mm Overall Weight: 1450 kg |
Overall Dimensions: 728 x 684 x 1480 mm Overall Weight: 230kg |
Overall Dimensions: 543 x 501 x 645 mm Overall Weight : 63 Kg |
Overall Dimensions: 700 x 655 x 700 mm Overall Weight: 80 kg |
BROCHURE |
Download |
Download |
Download |
Download |
Download |
ALL FILAMENTS
PA12-CF is a carbon fiber reinforced PA12 (nylon 12) consumable. Compared to PA6, it is less sensitive to moisture. The carbon fiber reinforcement significantly enhances stiffness, strength, and heat resistance, while providing excellent interlayer bonding.
Explore More

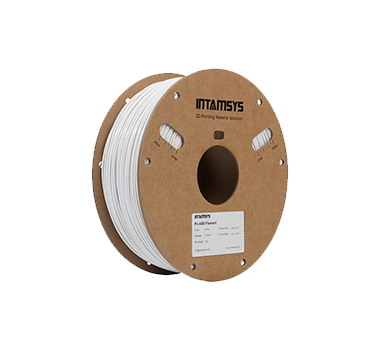

PC-ABS combines the strength of PC with the toughness of ABS, making it easier to print. It offers a low-gloss finish that hides layer lines and allows for printing functional prototypes and production parts with fine details and excellent surface quality.
Explore More
PC (polycarbonate) is a strong and transparent thermoplastic with characteristics of impact resistance, high rigidity, heat resistance, and flame retardance. INTAM™ PC's unique anti-warping feature makes it easier to print with dimensional stability, ideal for demanding production and prototype printing.
Explore More
