FUNMAT HT
DESIGNED FORPEEK 3D PRINTING
The FUNMAT HT is an Affordable, High-Performance 3D Printer with a Build Volume of 260 x 260 x 260 mm.
Achieve 50-Micron High-Resolution Industrial Quality 3D Printing with the FUNMAT HT.
The high melting point of PEEK and its demanding requirements for high-temperature processing make 3D printing challenging.
Advanced thermal design is essential to ensure the high quality and dimensional accuracy of the printed components.

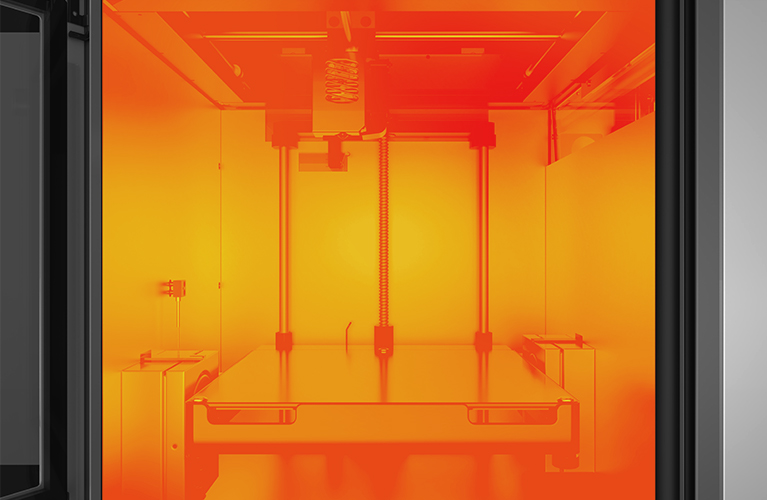

90°C Constant Temperature Chamber
160 °C Heated Build Plate
450 °C High-Temperature Extruder with an All-Metal Hot End
Capable of printing high-performance materials such as PEEK, PEEK-CF, PEEK-GF, PEKK, as well as PA-CF, PA, PC, ABS, and more without warping or cracking.
Make it easy and simple to set up the 3D printer.
Easily fixed to the platform and reused multiple times.
Enhance printing success rate and efficiency.
Intuitive operation for seamless printing.
Since its launch in 2016, it has been widely popular and fully endorsed by industry leaders
and various customers due to its reliable printing capability at an affordable price.
We've read a lot about errors that can occur when 3D printing these kinds of high-performance filaments. I was surprised that after slicing the design and sending it to the INTAMSYS FUNMAT HT, we had good parts to assemble in the packaging line just a few hours later.
Linus Göhle
Swedish ABIGO Medical
GreenTeam developed various applications with FUNMAT HT in their new electrical racing car.

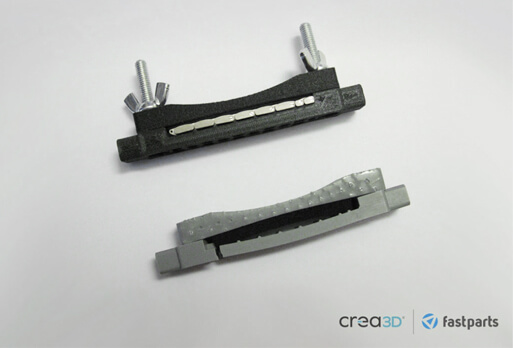

Promotion SpA leverages 3D printing with Nylon Carbon for high-performance luxury watch tooling solutions

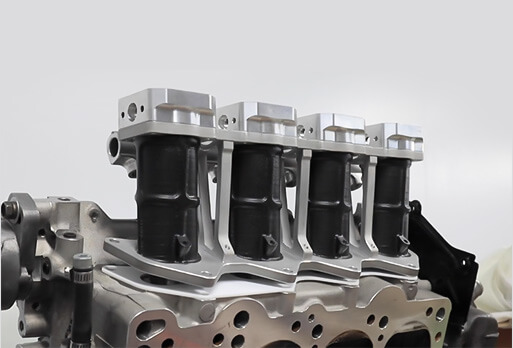

Hartley Engines leverages 3D printing for enhanced engine performance, material innovation, and rapid prototyping in motorsports
|
3D Printers
|
FUNMAT PRO 310 NEO |
FUNMAT PRO 610HT |
FUNMAT PRO 410 |
FUNMAT HT |
FUNMAT PRO 310 |
|---|---|---|---|---|---|
|
BUILD SIZE
|
Single Nozzle: |
610 × 508 × 508 mm |
305 x 305 x 406 mm |
260 x 260 x 260 mm |
Single Nozzle: |
|
MATERIALS
|
29
ABS+, ABS-GF, ABS-HS, ASA, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PC-PBT, PET-CF, PETG, PET-GF, PLA, PPA-CF, PPA-GF, PPS, PPS-CF, PPS-GF, PVA, SP3030, SP3050, SP5010, TPU95A, KIMYA ABS-ESD, BASF PC/ABS-FR, WANHUA PA12 |
36
PEEK, PEEK-CF, PEEK-GF, PEI 1010, PEI 9085, PEKK, PET-CF, PET-GF, PPA-CF, PPA-GF, ABS, ABS+, VICTREX AM™ 200 FIL, ASA, BASF ULTRAFUSE® PPSU, CONVESTRO PA6/66-GF20-FR, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PLA, PPS, PPSU, PVA, SP3030, SP3050, SP5000, SP5010, SP5040, SP5080, WANHUA PA12 |
30
ABS, ABS+, KIMYA ABS-ESD, VICTREX AMTM 200FIL, VICTREX AMTM450 FIL, ASA, CONVESTRO PA6/66-GF20-FR, HIPS, PA12-CF, PA6/66, PA6-CF, PC, BASF ULTRAFUSE® PC/ABS FR, PC/ABS, PC-FR, PC-PBT, PEEK, PEEK-CF, PEEK-GF, PEKK, PLA, PPA-CF, PPA-GF, PPS, PVA, SP3030, SP3050, SP5000, SP5010, WANHUA PA12 |
14
PEEK, PEEK-CF, PEEK-GF, PEKK, ABS, PC, PPA-CF, PPA-GF, PPS, PA12-CF, PA6/66, PA6-CF, ASA, PLA |
16
PA12-CF, PA6/66,PA6-CF,WANHUA PA12, PC, PC/ABS, ABS+, ABS, KIMYA ABS-ESD, ASA, BASFPC/ABS-FR, HIPS, PLA, PVA, SP3030, SP3050 |
|
PRINTER DIMENSIONS/
WEIGHT |
Overall Dimensions: 700 x 655 x 700 mm Overall Weight: 80 kg |
Overall Dimensions: 1710 x 1425 x 2080 mm With lighthouse: 1710 x 1425 x 2350 mm Overall Weight: 1450 kg |
Overall Dimensions: 728 x 684 x 1480 mm Overall Weight: 230kg |
Overall Dimensions: 543 x 501 x 645 mm Overall Weight : 63 Kg |
Overall Dimensions: 700 x 655 x 700 mm Overall Weight: 80 kg |
BROCHURE |
Download |
Download |
Download |
Download |
Download |
ALL FILAMENTS
PC (polycarbonate) is a strong and transparent thermoplastic with characteristics of impact resistance, high rigidity, heat resistance, and flame retardance. INTAM™ PC's unique anti-warping feature makes it easier to print with dimensional stability, ideal for demanding production and prototype printing.
Explore More
Polyether ether ketone is one of the best-performing plastics ever made. PEEK has excellent mechanical, thermal, and chemical resistance, making it the material of choice in some of the most demanding applications.
Explore More
ABS (acrylonitrile butadiene styrene copolymer) is a common general purpose thermoplastic 3D printing consumable with good mechanical strength balance, high dimensional stability and certain chemical resistance. ABS has characteristics that make it suitable for engineering design, prototyping, functional testing, part assembly, etc.
Explore More
PEEK+GF10 fiber-reinforced PEEK has better mechanical and heat resistance properties than standard PEEK, while glass fiber reinforcement improves crystallization speed and surface quality. Additionally, glass fiber reinforcement provides better insulation.
Explore More
